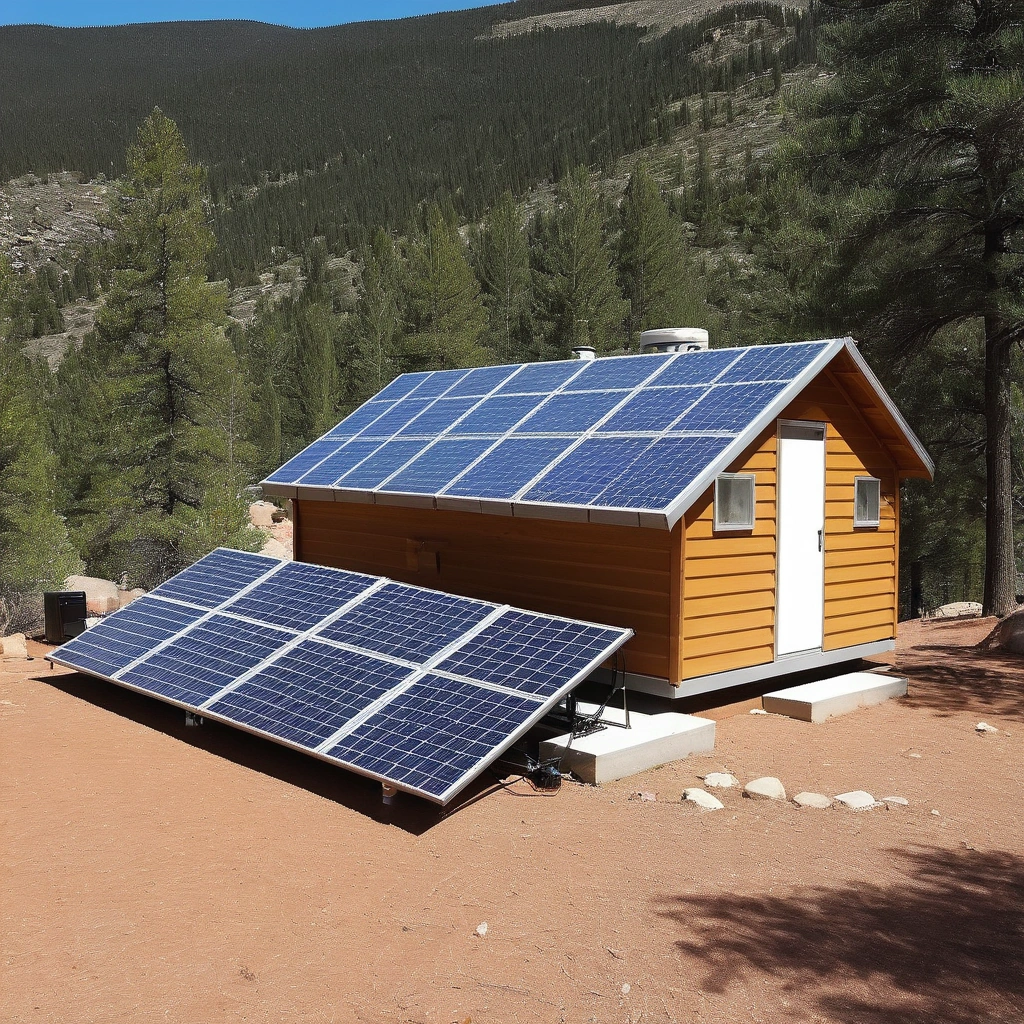

Off-grid solar power systems represent the cornerstone of energy independence for remote shelters, providing reliable electricity without connection to utility grids. These systems must be carefully designed to balance energy production, storage capacity, and consumption patterns while accounting for seasonal variations, weather extremes, and equipment longevity. Understanding the fundamental principles of solar energy conversion, battery chemistry, and power management enables the creation of robust systems that provide years of reliable service in challenging environments.
Solar irradiance, measured in watts per square meter, varies dramatically based on geographic location, time of year, atmospheric conditions, and panel orientation. The National Renewable Energy Laboratory (NREL) provides detailed solar resource maps showing average daily peak sun hours, which represent the equivalent hours of 1,000 W/m² irradiance. Locations in the American Southwest receive 5.5-6.5 peak sun hours daily, while northern regions may receive only 3-4 hours during winter months. This variation directly impacts system sizing and battery reserve requirements.
The photovoltaic effect converts photons into electrical current through semiconductor junctions in solar cells. Modern monocrystalline silicon cells achieve 20-22% efficiency under standard test conditions, while polycrystalline cells typically reach 15-17%. Temperature coefficients indicate performance degradation at elevated temperatures, typically -0.3% to -0.5% per degree Celsius above 25°C. This means panels in hot climates may produce 10-20% less power than their rated capacity during peak afternoon hours when cooling loads are highest.
System Component Selection and Sizing Calculations
Proper component selection ensures system reliability and longevity while minimizing costs. Each element must be matched to system requirements and compatible with other components. Oversizing wastes resources, while undersizing leads to premature failure or inadequate performance during critical periods.
Solar panel selection involves balancing efficiency, durability, and cost. Monocrystalline panels offer highest efficiency and better low-light performance but cost 10-20% more than polycrystalline alternatives. Bifacial panels capture reflected light from ground surfaces, increasing production by 5-30% depending on albedo. Panel voltage ratings must match charge controller and battery bank specifications. For 48V battery systems, panels wired in series should produce 60-90V to account for temperature variations and voltage drop.
Load analysis determines total system capacity requirements:
- List all electrical loads with wattage ratings
- Estimate daily usage hours for each load
- Calculate daily watt-hours: Watts × Hours = Wh/day
- Sum all loads for total daily consumption
- Add 25% safety factor for unforeseen loads
- Account for inverter efficiency (typically 85-95%)
Example calculation for small off-grid cabin:
- LED lighting: 60W × 5 hours = 300 Wh
- Refrigerator: 100W × 8 hours (duty cycle) = 800 Wh
- Water pump: 500W × 0.5 hours = 250 Wh
- Electronics: 50W × 4 hours = 200 Wh
- Total: 1,550 Wh/day
- With 25% safety factor: 1,938 Wh/day
- Accounting for 90% inverter efficiency: 2,153 Wh/day
Battery bank sizing must provide adequate storage for multiple days of autonomy during cloudy periods. Deep-cycle batteries should not be discharged below 50% to maintain longevity. For three days of autonomy:
Battery capacity = (Daily consumption × Days of autonomy) / (Depth of discharge × System voltage) Battery capacity = (2,153 Wh × 3) / (0.5 × 48V) = 269 Ah at 48V
Charge Controller Technologies and Programming
Charge controllers regulate power flow from solar panels to batteries, preventing overcharging while maximizing energy harvest. Two primary technologies dominate off-grid applications, each with distinct advantages and optimal use cases.
Pulse Width Modulation (PWM) controllers work by rapidly switching the connection between panels and batteries, effectively reducing average charging current as batteries approach full charge. PWM controllers are simple, reliable, and economical for small systems where panel voltage closely matches battery voltage. However, they cannot convert excess voltage into additional current, wasting potential power when panel voltage exceeds battery requirements.
Maximum Power Point Tracking (MPPT) controllers continuously adjust input voltage to operate panels at their maximum power point, converting excess voltage into additional charging current. This technology increases energy harvest by 15-30% compared to PWM, particularly in cold weather when panel voltage increases. MPPT controllers excel in systems with mismatched panel and battery voltages or long wire runs where voltage drop is significant.
Controller programming optimizes battery charging for maximum lifespan. Key parameters include:
- Bulk charge voltage: 14.4-14.8V for 12V systems
- Absorption time: 2-4 hours depending on battery type
- Float voltage: 13.2-13.8V for continuous maintenance
- Equalization voltage: 15.5-16.2V for periodic conditioning
- Temperature compensation: -3 to -5 mV/°C per cell
- Low voltage disconnect: 11.5-11.8V to prevent damage
Battery Technologies for Off-Grid Energy Storage
Battery selection significantly impacts system performance, maintenance requirements, and total cost of ownership. Each technology offers distinct advantages and limitations that must be matched to specific applications and user capabilities.
Flooded lead-acid batteries provide economical energy storage with proven reliability. These batteries tolerate abuse, offer easy monitoring through specific gravity testing, and can be equalized to restore capacity. However, they require regular maintenance including water addition, terminal cleaning, and equalization charging. Hydrogen gas emission during charging mandates adequate ventilation. Cold temperature performance suffers, with capacity reduced by 50% at -20°C.
Absorbed Glass Mat (AGM) batteries eliminate maintenance requirements while providing better deep-cycle performance than flooded batteries. The absorbed electrolyte prevents spilling and reduces gassing, allowing installation in living spaces. AGM batteries charge faster and provide higher current output than flooded equivalents. Temperature stability improves cold-weather performance. However, AGM batteries cost 50-100% more than flooded batteries and cannot be equalized if sulfated.
Lithium iron phosphate (LiFePO4) batteries revolutionize off-grid storage through superior cycle life, deeper discharge capability, and minimal maintenance. These batteries provide 3,000-5,000 cycles at 80% depth of discharge compared to 500-1,000 cycles for lead-acid. Usable capacity reaches 80-90% versus 50% for lead-acid, effectively doubling energy storage per rated amp-hour. Charging efficiency exceeds 95%, reducing generator runtime and solar array requirements.
Installation Best Practices and Code Compliance
Proper installation ensures safety, maximizes performance, and satisfies insurance requirements. Following National Electrical Code (NEC) Article 690 for solar installations and Article 480 for battery systems prevents fires, shocks, and equipment damage.
Grounding system design protects against lightning strikes and electrical faults. Equipment grounding bonds all metallic components to prevent shock hazards. System grounding connects one current-carrying conductor to earth, typically the negative terminal in off-grid systems. Grounding electrodes must achieve less than 25 ohms resistance to earth, often requiring multiple rods in dry or rocky soils. Surge protection devices on DC and AC sides protect sensitive electronics from voltage spikes.
Wire sizing prevents voltage drop and overheating. NEC requires conductors sized for 125% of maximum current. Voltage drop should not exceed 3% from panels to batteries. For a 30A circuit over 50 feet at 48V:
Wire size = (2 × Length × Current × 0.001) / (Voltage drop × Voltage) Wire size = (2 × 50 × 30 × 0.001) / (0.03 × 48) = 2.08
This requires 2 AWG copper wire for 3% voltage drop.
Overcurrent protection prevents fires from short circuits or ground faults. Each series string requires individual fusing at 156% of short-circuit current rating. Battery banks need catastrophic fuses rated for available fault current, often exceeding 10,000 amps. DC-rated breakers provide convenient disconnection for maintenance. Arc-fault circuit interrupters detect series arcing from loose connections or damaged insulation.
System Monitoring and Maintenance Protocols
Effective monitoring identifies problems before they cause system failures or permanent damage. Modern monitoring systems provide real-time data access through internet connections, enabling remote troubleshooting and performance optimization.
Battery monitoring represents the most critical aspect of system health assessment. Key parameters include:
- Voltage trends indicating state of charge
- Current flow showing charging and load patterns
- Temperature affecting capacity and charging requirements
- Specific gravity for flooded batteries revealing cell imbalances
- Internal resistance indicating aging or sulfation
Data logging enables performance analysis and troubleshooting. Recording parameters at 15-minute intervals captures diurnal patterns and anomalies. Monthly energy production compared to theoretical values based on irradiance data reveals degradation or shading issues. Load profiling identifies opportunities for conservation or load shifting.
Preventive maintenance schedules extend equipment lifespan:
- Daily: Visual inspection of indicators and displays
- Weekly: Check battery water levels (flooded types)
- Monthly: Clean panel surfaces, check wire connections
- Quarterly: Measure battery specific gravity, equalize if needed
- Annually: Thermal imaging of connections, torque critical fasteners
- Every 2-3 years: Replace surge protection devices
